Unlock Quantize Ceiling
Unlock Quantize Ceiling changes only the maximum value of the Quantize Colors slider. Enabling it does not re-quantize the image and does not raise the current value automatically.
The option is disabled by default.
Location

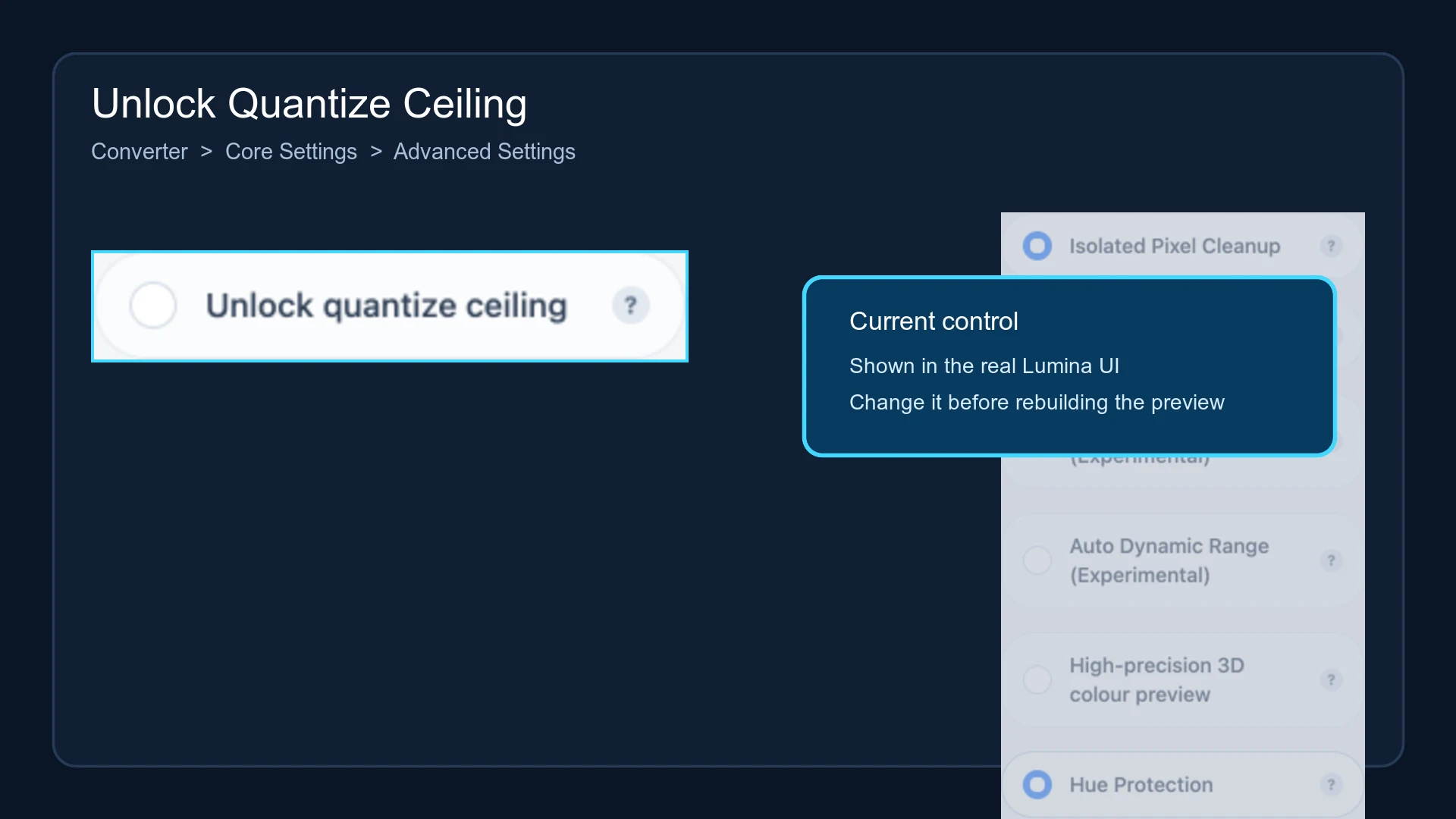

Open Converter → Core Settings → Advanced Settings, then locate Unlock quantize ceiling.
Value ranges
| State | Quantize Colors range | Step |
|---|---|---|
| Disabled | 8–256 | 8 |
| Enabled | 8–8192 | 8 |
The default quantize value is 48. Enabling the switch keeps the current value; processing changes only after the slider is moved above 256.
When the switch is disabled again, a current value above 256 is immediately clamped back to 256.
Performance impact
Increasing the budget into the hundreds or thousands can significantly increase:
- clustering and colour-mapping time;
- memory consumption;
- the number of recipes that must be solved;
- the number of colour meshes requested for a high-precision 3D preview;
- browser rendering and GLB-generation time.
Unlocking is not a mandatory quality step. Effective image colours, final dimensions, nozzle line width, and available recipes still limit useful detail.
Relationship with the 3D preview
The normal 3D preview still uses 128 colour meshes as its default ceiling. To preserve more low-frequency preview colours when Quantize Colors is above 128, also enable High-precision 3D Colour Preview.
Changing the switch or quantize value requires a new preview and model. Lumina recipe cards store the quantize value, but not the separate unlock switch.
