Exhaustive Cache Density
A material profile enumerates recipes reachable with the selected materials and layer count, then indexes their predicted colours in a Lab grid. Exhaustive Cache Density controls the grid resolution. A finer grid makes it less likely that similar colours with different recipes collide in the same cell.
Tiers

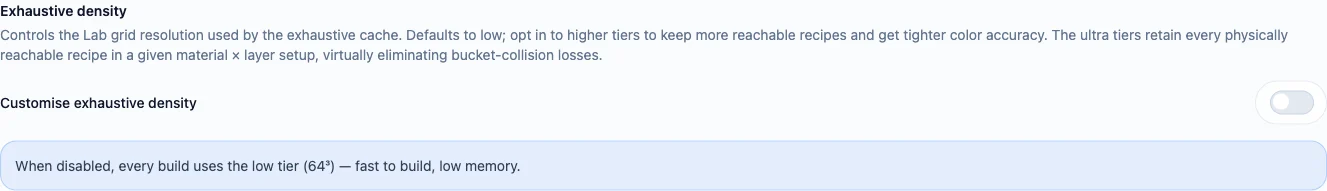

Available tiers are 64³, 128³, 256³, 512³, 1024³, and 2048³. With Customise exhaustive density disabled,
every build uses 64³.
Higher tiers primarily reduce candidate loss caused by grid collisions. They are useful when a material profile needs tighter colour matching. They cannot create physically unreachable colours or correct inaccurate material measurements.
Cache and resource behaviour
The cache is sparse: it stores physically reachable recipes rather than allocating every cell in the full 3D grid. Each resolution creates its own cache file, so selecting a new tier does not overwrite caches from other tiers.
Builds are still governed by safety budgets:
- small recipe spaces can use exact mode;
- larger spaces are checked against estimated memory and total recipe counts;
- a build that exceeds the active budget stops with guidance to reduce material or layer count instead of consuming unbounded resources.
The first build at a new tier therefore takes longer than loading an existing cache. Lookup cost may also increase mildly with density.
not use this grid density.
